NeRF-KPlanes-SemX
An implementation and explanantion of NeRF and K-Planes in PyTorch. This repository contains the code for NeRF and K-Planes for my Semester X Neural Networks and Deep Learning Project. A report has also been generated explaining in detail the models implemented, the metrics and dataset used and the libraries and open-source software leveraged. It is based on the implementation of Maxime Vandegar (@Papers in 100 Lines of Code).
| Input Data | Pre-Processing (Colmap Based) | Output |
|---|---|---|
 |
 |
 |
Notebook Explaing Full Pipeline
Also check out Maxime’s Course on Udemy.
⚠️ Gifs may Fail to Render, All assets available in img directory.
High Fidelity Outputs (Using NeRFStudio)
Animations made using Blender

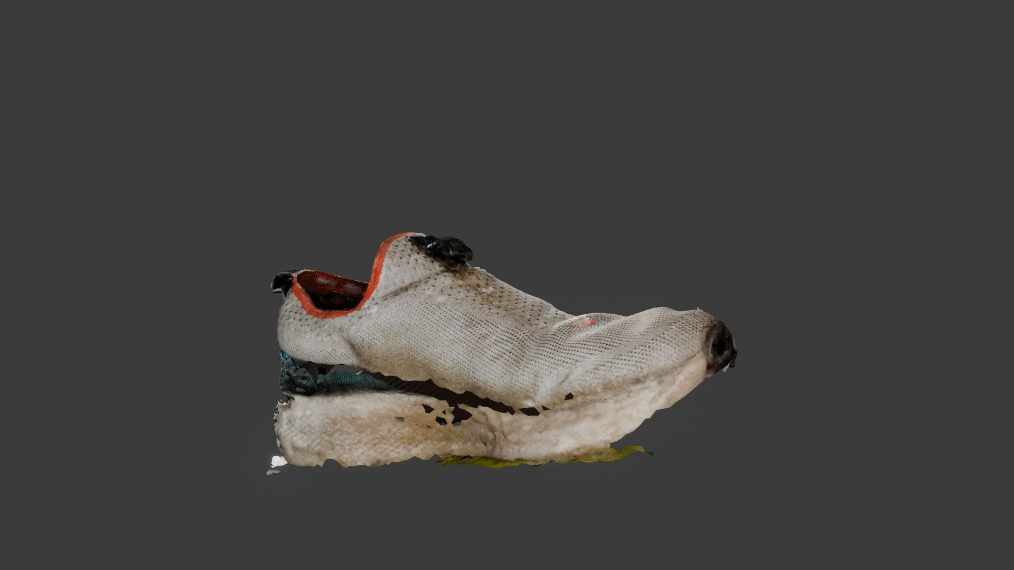

| Guitar | Shoe | Model Car |
|---|---|---|
 |
 |
|
Models Implemented

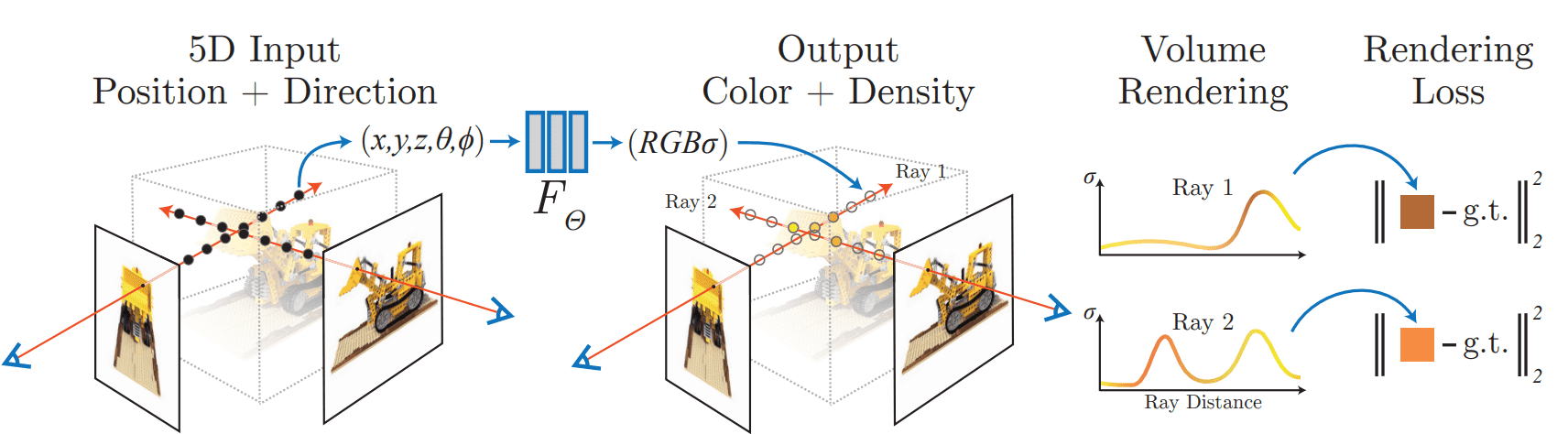

NeRF Model

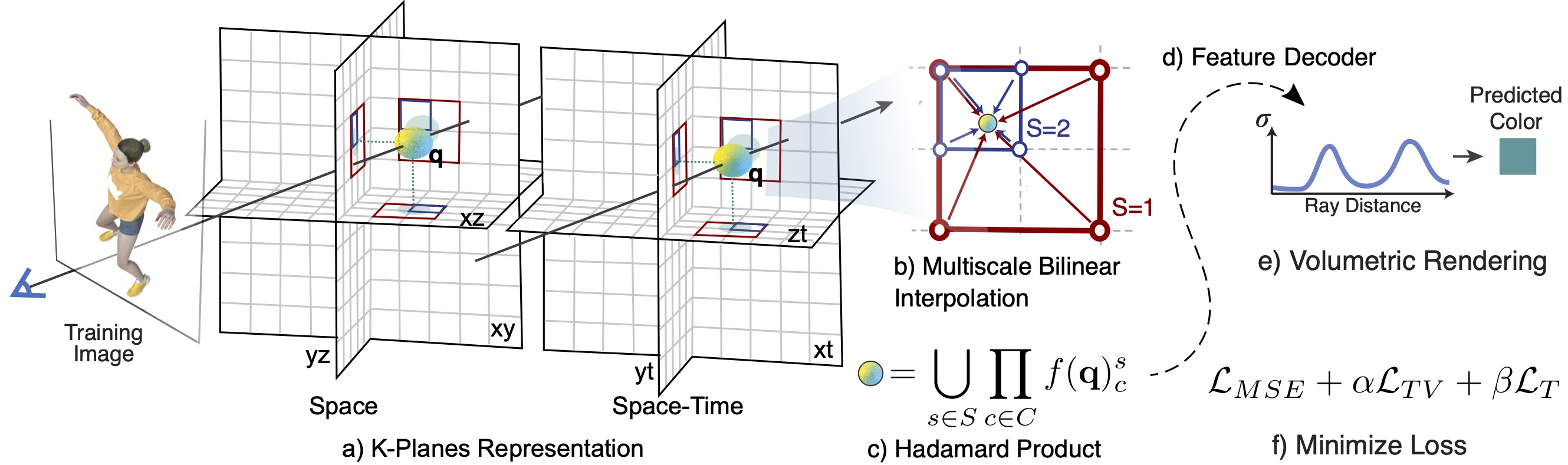

K-Planes Model
Refer to Report for detailed explanation.
Data Used
We have used the lego directory of the blender dataset. Pre-processed dataset can be found here @Papers in 100 Lines of Code.
Custom Data
For custom data, we have used NeRF studio to make our renders. Instructions for creation and processing of custom data can be found here NeRF Studio Instructions as well as detailed explanation for data acquistion can be found here Report.

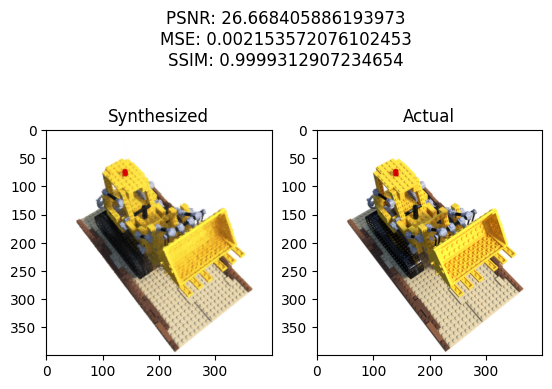

Results

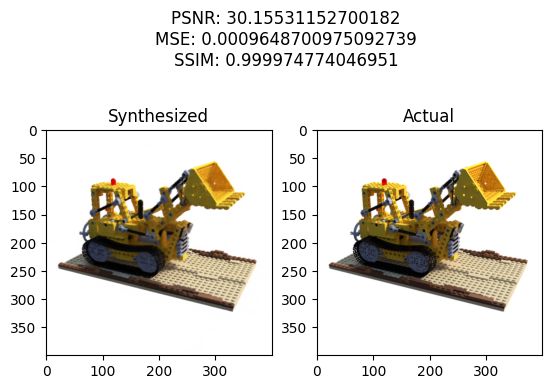

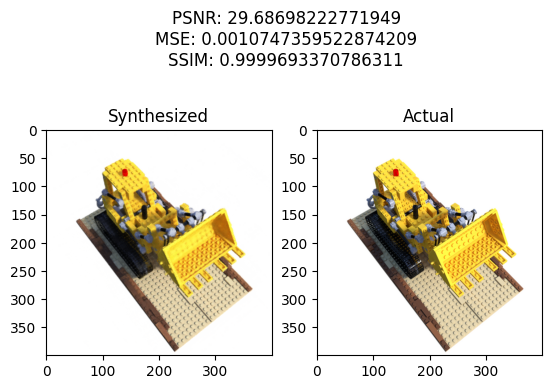

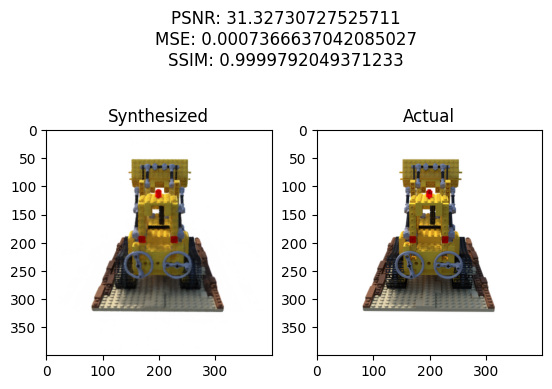

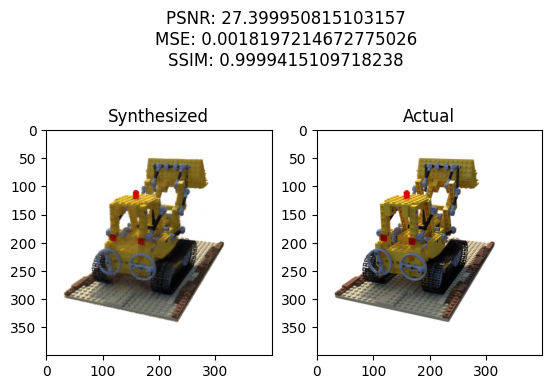

| NeRF | K-Planes |
|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
Averaged Metrics
| Metric | NeRF | K-Planes |
|---|---|---|
| MSE | 29.92 | 26.63 |
| PSNR | 0.0010 | 0.0022 |
| SSIM | 0.99 | 0.99 |
| Render Time | 10.13s | 3.90s |
All testing has been performed on synthetic blender data.
Repository Structure
Directories
- report - Detailed report about project.
- img - Assets for readme.
- backbones - Scripts for NeRF and K-Planes.
- scraps - Notebook experimenting with Ray Tracing and Rendering.
- utils - Basic image utils.
Scripts
- train.py - Training NeRF model.
- test.py - Novel View synthesis.
- evaluate.py - Metricced Novel View Synthesis.
- full_pipe.ipynb - Complete pipeline demo notebook.
